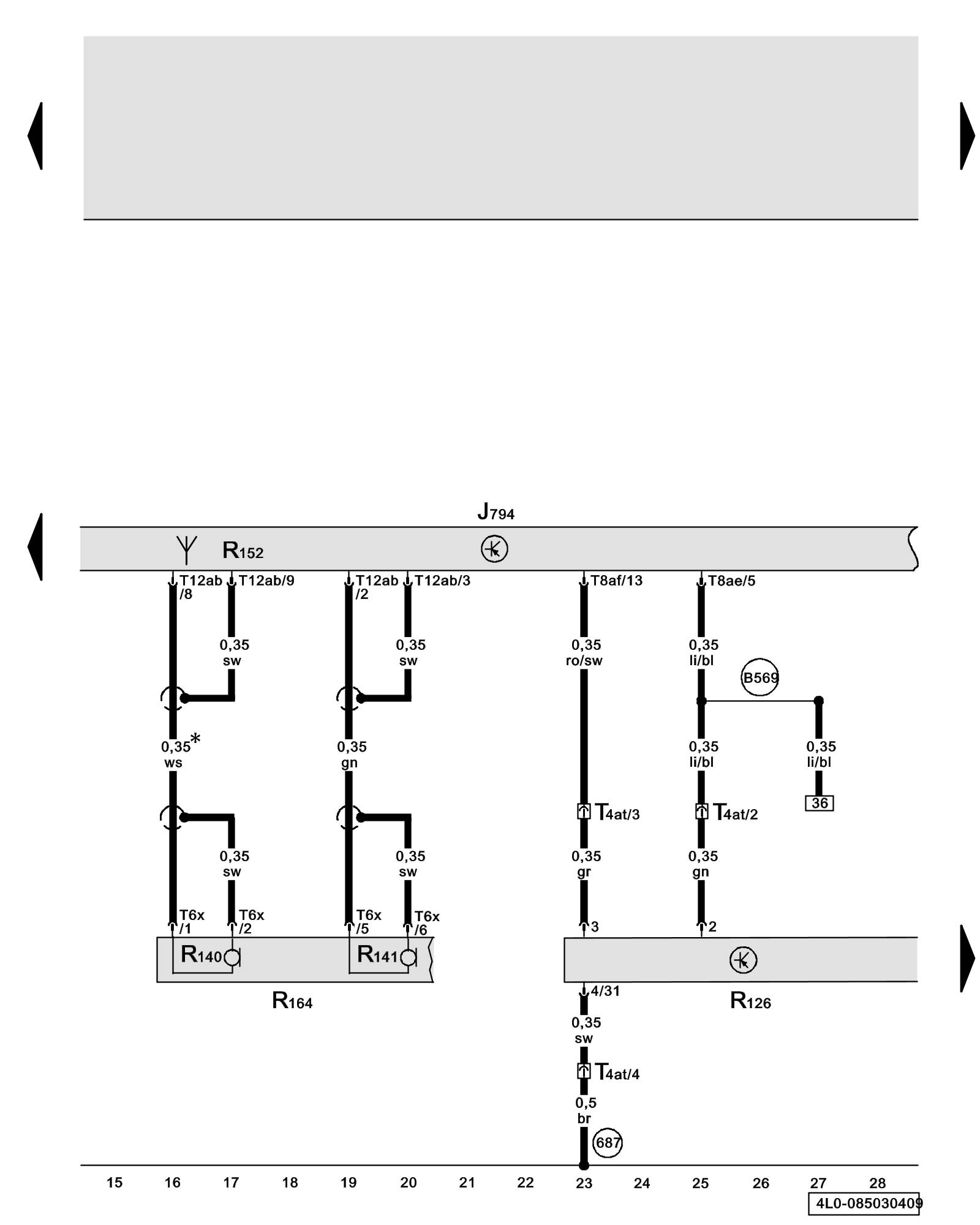

Diagram 85/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Control Module for Information Electronics 1, Telephone Baseplate, Microphone Unit (in front roof module), Bluetooth Antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J794 - Control Module for Information Electronics 1 Component Locations

R126 - Telephone Baseplate Phone System Components Locations

R140 - Left Front Microphone Phone System Components Locations

R141 - Right Front Microphone Phone System Components Locations

R152 - Bluetooth Antenna

R164 - Microphone Unit (in front roof module) Phone System Components Locations

T4at - 4-Pin Connector, brown, in center console

T6x - 6-Pin Connector, blue, on microphone unit (in front roof module)

T8ae - 8-Pin Connector, brown (Connector A), on control module for information electronics 1

T8af - 8-Pin Connector, black (Connector D), on control module for information electronics 1

T12ab - 12-Pin Connector, blue (Connector B), on control module for information electronics 1

(687) - Ground Connection 1 (on center tunnel) Locations

(B569) - Connection 36 (in main wiring harness)

* - Models with voice control

Previous Diagram 85/2 (Tracks 1-14)

Next Diagram 85/4 (Tracks 29-42)
