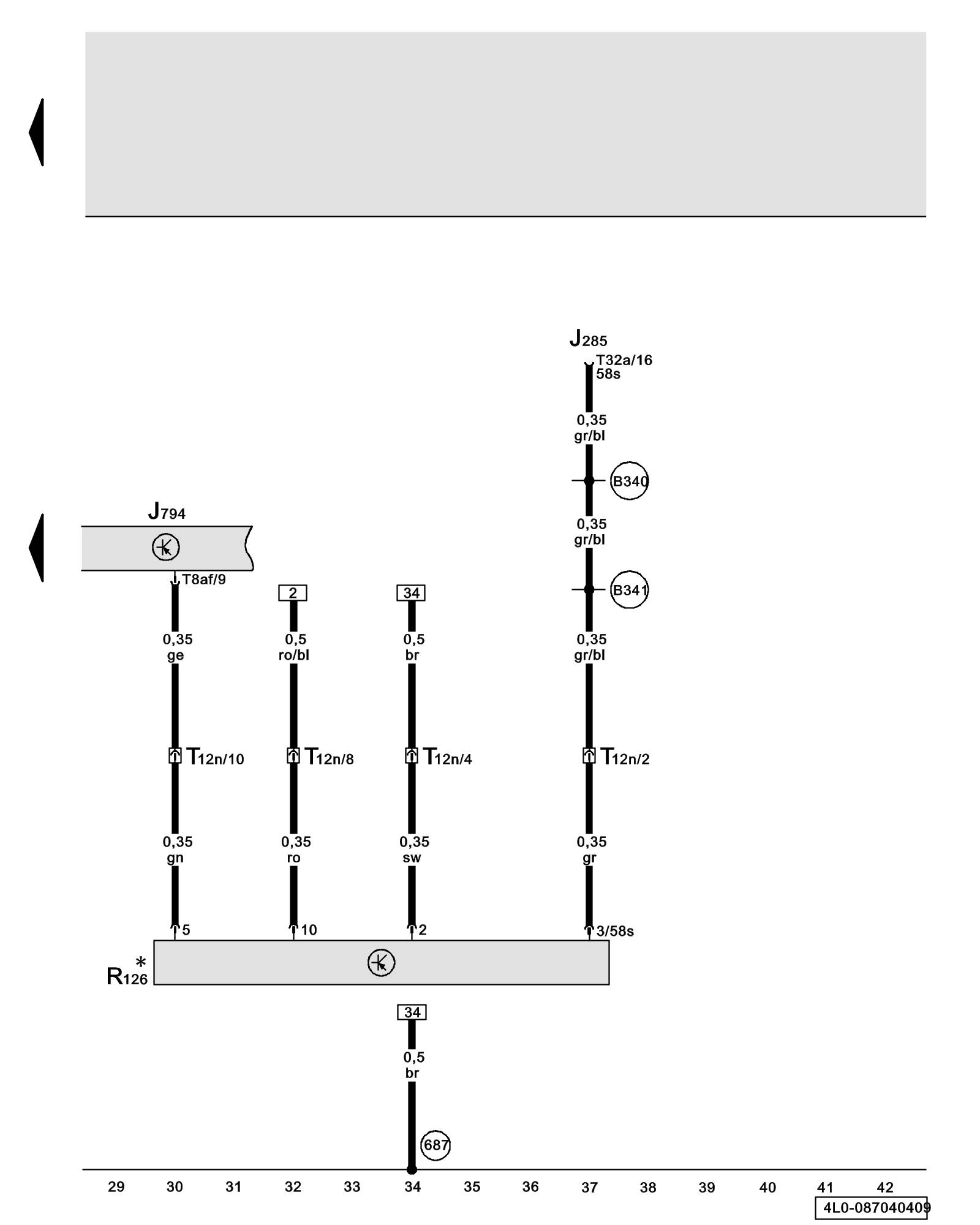

Diagram 87/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Control Module for Information Electronics 1, Telephone Baseplate





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument Cluster Control Module Overview Of Control Modules

J794 - Control Module for Information Electronics 1 Component Locations

R126 - Telephone Baseplate Phone System Components Locations

T8af - 8-Pin Connector, black (Connector D), on control module for information electronics 1

T12n - 12-Pin Connector, black, in center armrest telephone baseplate

T32a - 32-Pin Connector, grey, on instrument cluster control module

(687) - Ground Connection 1 (on center tunnel) Locations

(B340) - Connection 1 (58s) (in main wiring harness)

(B341) - Connection 2 (58s) (in main wiring harness)

* - Models with telephone handset in center armrest

Previous Diagram 87/3 (Tracks 15-28)
