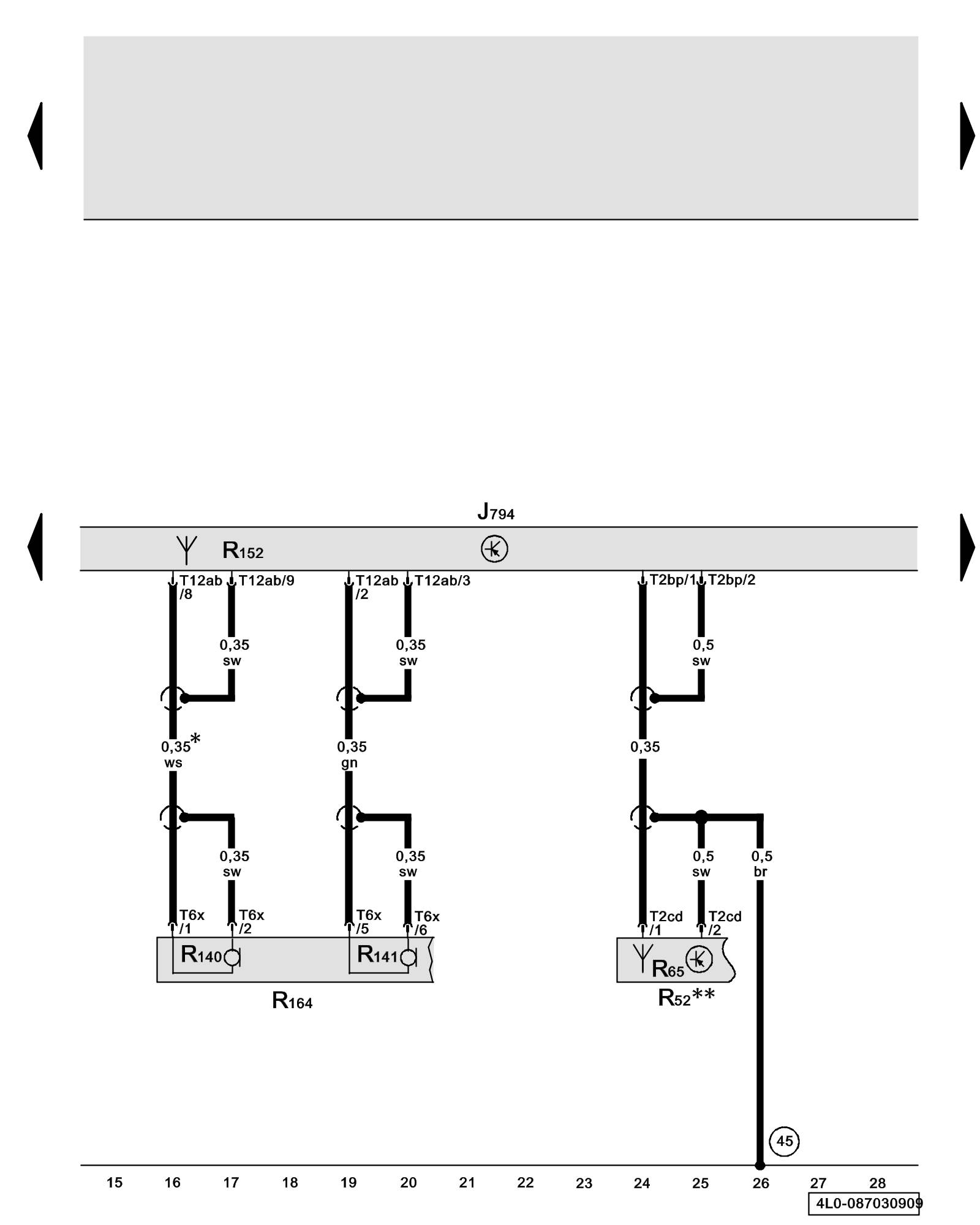

Diagram 87/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Control Module for Information Electronics 1, Microphone Unit (in front roof module), Bluetooth Antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J794 - Control Module for Information Electronics 1 Component Locations

R52 - Antenna for Radio, Telephone, Navigation System Locations

R65 - Telephone Antenna

R140 - Left Front Microphone Phone System Components Locations

R141 - Right Front Microphone Phone System Components Locations

R152 - Bluetooth Antenna

R164 - Microphone Unit (in front roof module) Phone System Components Locations

T2bp - Double Connector, purple (Connector H), on control module for information electronics 1

T2cd - Double Connector, purple, on antenna for radio, telephone, navigation system

T6x - 6-Pin Connector, blue, on microphone unit (in front roof module)

T12ab - 12-Pin Connector, blue (Connector B), on control module for information electronics 1

(45) - Ground Connection (behind instrument panel, center) Locations

* - Models with voice control

** - Roof Antenna
