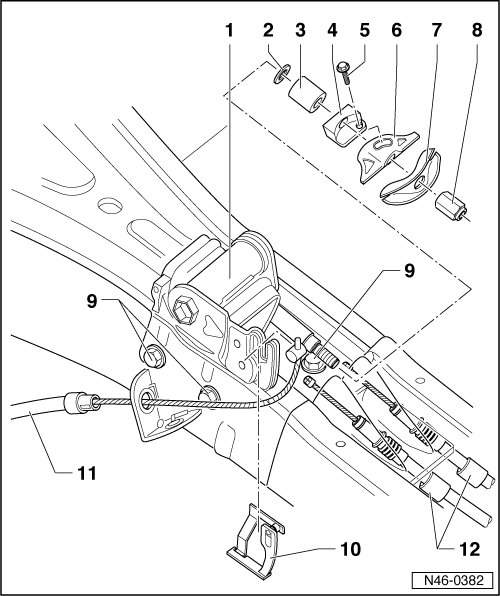

Pedal Parking Brake Transfer Module Assembly Overview

Pedal Parking Brake Transfer Module Assembly Overview






1 Transfer Module

2 Washer

3 Buffer

4 Cable Anchor Bracket

5 TORX Bolt

6 Cable Anchor

7 Compensator Bracket

8 Nut

9 Bolt

• 23 Nm

10 Clip

11 Front Brake Cable

• Removing and installing, refer to => [ Front Brake Cable ] Front Brake Cable.

12 Rear Brake Cables

• Removing and installing, refer to => [ Rear Brake Cables ] Rear Brake Cables.
