Rear Brake Cable Assembly Overview

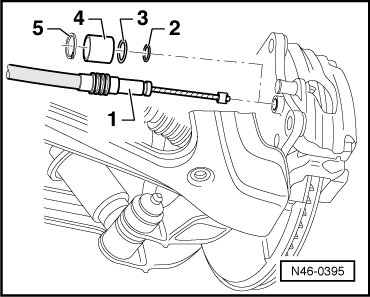

Rear Brake Cable Assembly Overview






1 Rear Brake Cable
2 Sealing ring
3 Sealing ring
4 Sleeve
5 Securing ring
