Front Brake Cable

Front Brake Cable

Removing

- Remove driver's seat.

- Remove center console.

- Remove sill panel trim.

- Remove foot-operated parking brake lever. Refer to => [ Pedal Parking Brake Lever ] Pedal Parking Brake Lever.

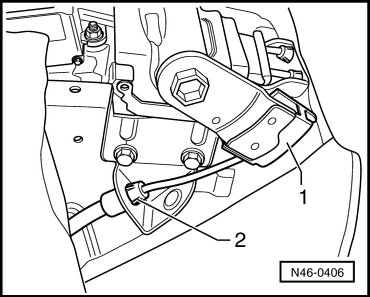

- Unclip cable - 2 - in transfer module from mount - 1 -. Refer to => [ Pedal Parking Brake Transfer Module Assembly Overview ] Pedal Parking Brake Transfer Module Assembly Overview.






- Lift carpet and pull out brake cable.

Installing

- Installation is performed in the reverse sequence.

• After installing parking brake lever and tightening bolts, both remove transport lock (drill) from parking brake lever.

There will be an automatic length compensation of the brake cable caused by the spring.

- Check free play at foot operated parking brake lever. Refer to => [ Pedal Parking Brake, Adjusting Free Play ] Pedal Parking Brake, Adjusting Free Play.
