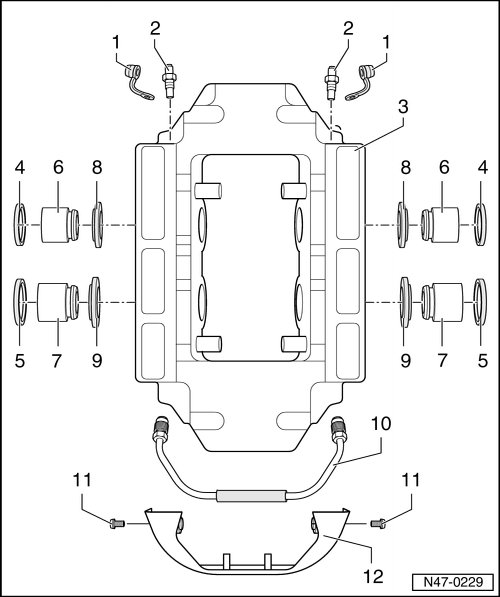

Rear Brake Caliper Assembly Overview

Rear Brake Caliper Assembly Overview

• Install complete repair kit when servicing.

• Only use mineral spirits to clean brake parts.

• Apply thin coat of assembly paste (G 052 150 A2) to brake cylinders, pistons and seals.






1 Dust Cap

• Install onto bleeder valve.

2 Bleeder Valve

• Torque specification: 12 Nm

• Apply a thin coat of assembly paste (G 052 150 A2) to the threads before screwing in.

3 Brake Caliper Housing

4 Seal for 28 mm Piston

• Removing and installing, refer to => [ Rear Brake Caliper Piston ] Rear Brake Caliper Piston.

5 Piston Seal 30 mm/32 mm

• Removing and installing, refer to => [ Rear Brake Caliper Piston ] Rear Brake Caliper Piston.

6 28 mm Piston

• Removing and installing, refer to => [ Rear Brake Caliper Piston ] Rear Brake Caliper Piston.

• First apply thin coat of brake cylinder paste (G 052 150 A2) on piston.

7 Piston 30 mm/32 mm

• Removing and installing, refer to => [ Rear Brake Caliper Piston ] Rear Brake Caliper Piston.

• Apply thin coat on piston beforehand.

8 Protective Caps for 28 mm Piston

• Do not damage when installing piston.

9 Piston 30 mm/32 mm Protective Caps

• Do not damage when installing piston.

10 Connecting Pipe

• Not installed on all models.

• Torque specification: 17 Nm

11 TORX Bolt

12 Protective Plate

• Not installed on all models.
