Brakes - Corrected Brembo(R) Wear Specifications
46 ELSA brake specification46 11 14
2017599/4
October 21, 2011.
Supersedes Technical Service Bulletin Group 46 number 11 - 13 dated May 13, 2011 for reasons listed below.

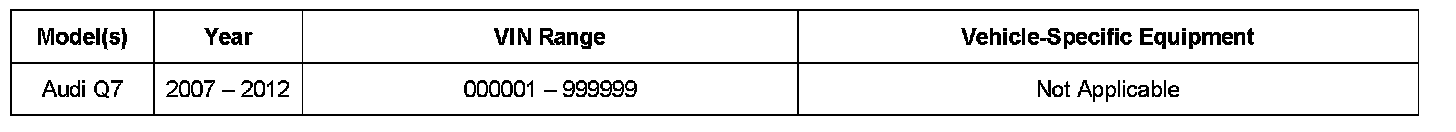

Affected Vehicles
Condition
ElsaWeb contains incorrect information concerning brake pad wear. The information in ElsaWeb is being corrected.
Technical Background

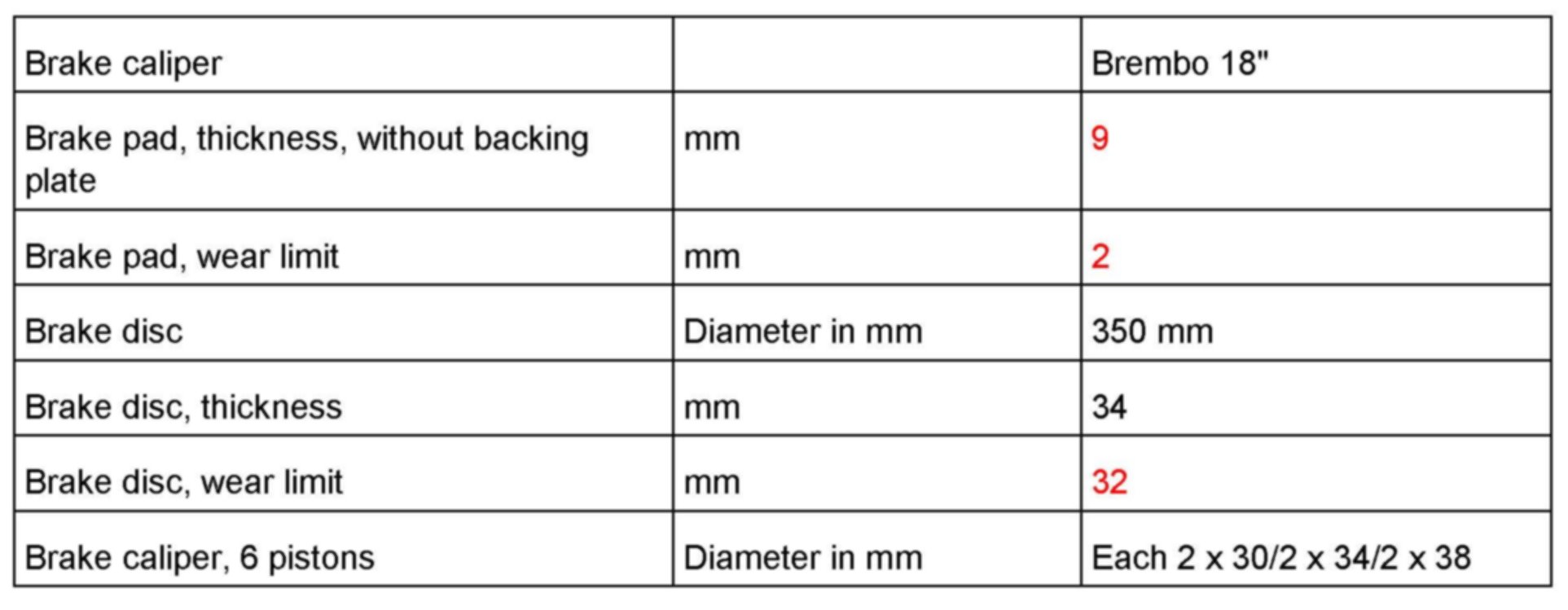

^ The table above contains the corrected wear specifications for front Brembo 18" brakes. Corrected values appear in red.
^ Each brake pad has its own wear sensor.
Production Solution
Not applicable.
Service
1. When measuring Audi Q7 brake pads, reference the specifications in this TSB when determining pad wear and remaining service life.

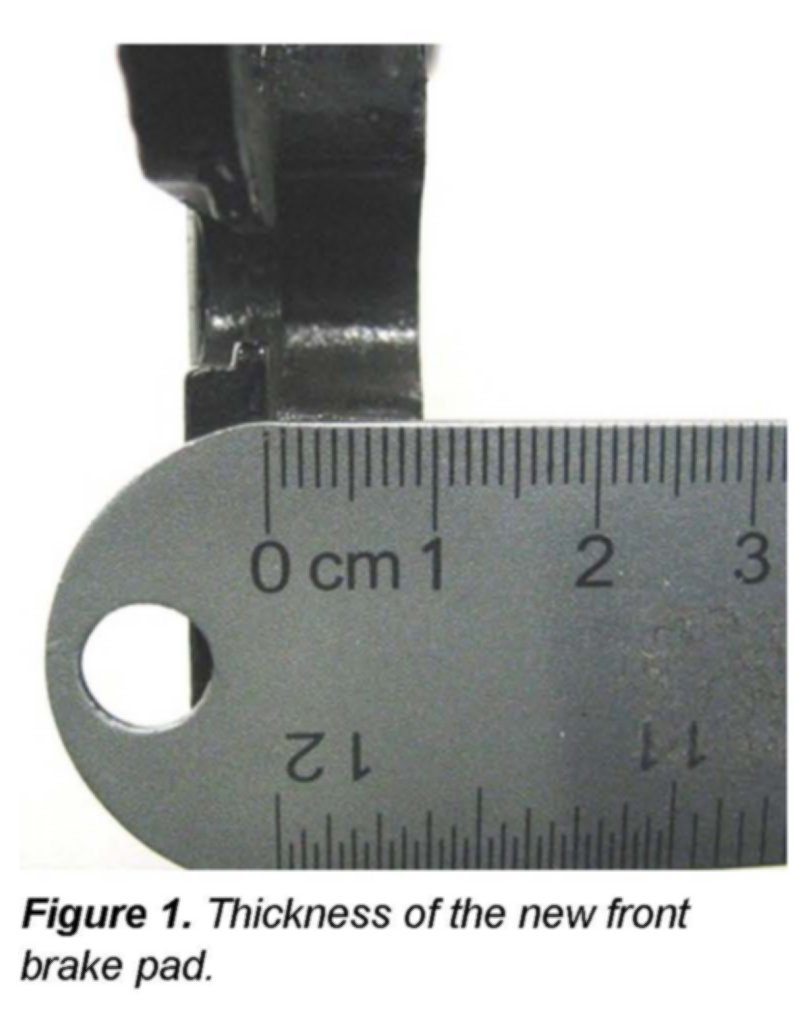

Figure 1 displays the thickness of a new front brake pad on an Audi Q7.
Warranty
This TSB is informational only and not applicable to any Audi warranty.
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
