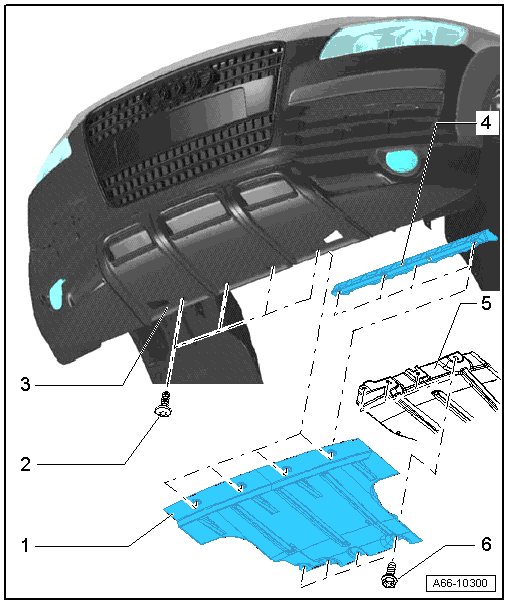

Noise Insulation, Offroad Style Package Overview

Noise Insulation, Offroad Style Package Overview






1 Noise Insulation

• The noise insulation must first be cut out if it is a new part.

2 Bolt

• 2 Nm

3 Front Spoiler With Impact Guard

4 Connecting Piece

5 Rear Shield

6 Bolt

• 8 Nm

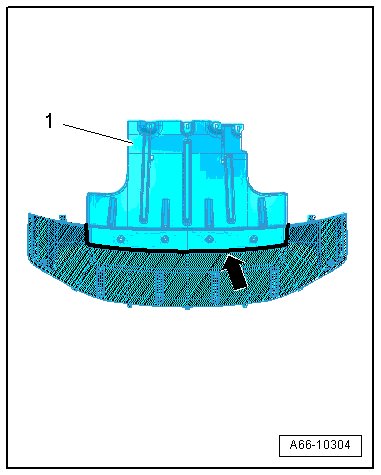

Cutting The Noise Insulation






- Cut and remove the front part with a body saw along the line - arrow - on the noise insulation - 1 -.
