Sunroof / Moonroof Drain: Service and Repair

Water Drain Hoses, Cleaning

• For cleaning, it is recommended that you create your own assisting tool out of a speedometer inner cable, approximately 8 feet (230 cm).

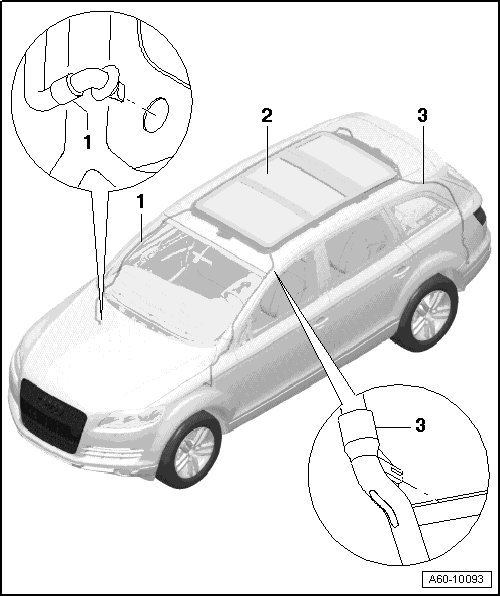

1 Front Water Drain Hose

• Front water drain hoses run into A pillars and end under wheel housing liners.

• Cleaning takes place from sunroof frame.

2 Sunroof Frame

3 Rear Water Drain Hose

• Rear water drain hoses are routed in - C - pillars and end in wheel housing above wheel housing liner.

• Cleaning is performed at lower end of hose.

Water Drain Hose, Connecting

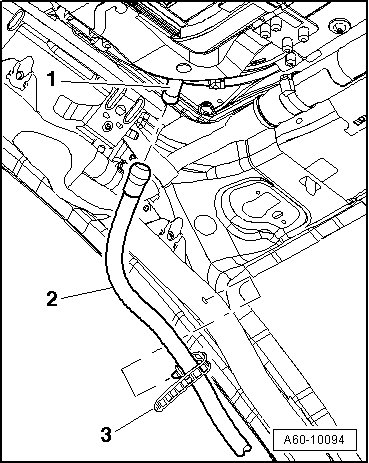

- After installing sunroof frame, connect water drain hose - 2 - to connecting piece - 1 - on frame.

- Secure water drain hose with cable ties - 3 -.
