Switch Mount

Switch Mount

Removing

Passenger side door trim

- Remove door handle. Refer to => [ Pull Handle ] .

Procedure for both sides

- Remove the door trim panel. Refer to => [ Door Trim ] Door Trim.

- If present, remove the air duct. Refer to => [ Air Duct ] Air Intake Grille For The Air Duct.

- Remove armrest. Refer to => [ Armrest ] Armrest.

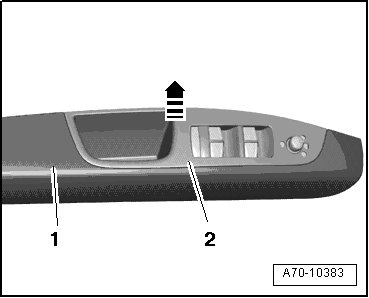

- Remove switch mount - 2 - from armrest - 1 - - arrow -.






• The switch mount on the driver side is shown in the illustration.

- Remove the mirror adjustment switch.

- Remove the window regulator switch.

Installing

Install in reverse order of removal.
