Sun Visor Overview

Sun Visor Overview

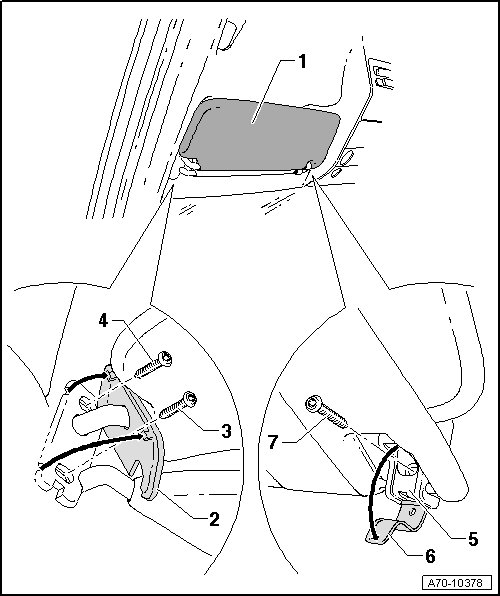

• Double sun visor is shown in illustration






1 Sun Visor

• Some vehicles are equipped with a double sun visor.

• Removing and installing, refer to => [ Sun Visor ] Sun Visor.

2 Cover

3 Bolt

• 3 Nm

• Approximately 0.75 inch (19 mm) long.

• If 2 screws of different lengths are installed, shorter screw for securing sun visor must be installed at front of direction of travel.

4 Bolt

• 3 Nm

5 Sun Visor Center Bearing

6 Cover

• For sun visor center bracket.

7 Bolt

• 3 Nm
