Screen Separator Wall Mount

Screen Separator Wall Mount

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

Removing

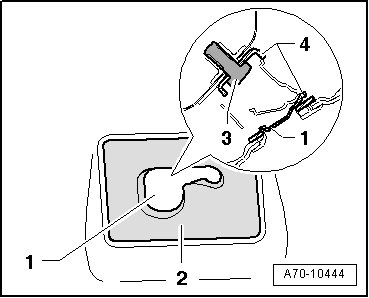

- Unclip screen separator wall mount cover - 2 - with the (3409).

• Cover - 2 - is connected to the headliner via a limiting strap.

• To replace cover - 2 -, thread the limiting strap out of the cover.

- Move cover cap - 1 - to the side and remove screw - 3 - on screen separating wall mount - 4 -.

- Remove mount from headliner and body.

• Threaded screw holes - 3 - must always be cleaned (for example, with thread cutter)

• If threaded hole is not cleaned, there is the danger that the new screw could seize up during installation and shear off when removed again.

Installing

Install in reverse order of removal.

Tightening Specifications






* Replace screw
