Roof Grab Handle

Roof Grab Handle

Special tools, testers and auxiliary items required

• Front-End Hook (3370)

Removing

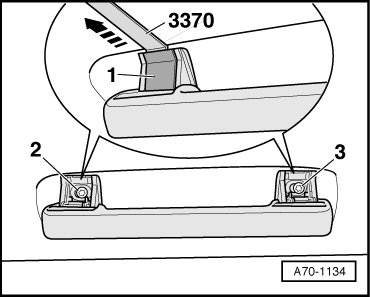

- Open roof grab handle cover - 1 - with (3370).

- Remove screws - 2 - and - 3 -.

- Remove roof grab handle.

Installing

Install in reverse order of removal. Note the following:

Rear roof grab handle is equipped with a coat hook.

• Threaded holes for roof grab handle must be cleaned of locking compound residue after removal. Otherwise, new screws could lock up when installed and shear off when removed again.

• They can be cleaned with a thread cutter.

• Replace roof grab handle screws (self-locking).

Tightening Specifications






* Replace screws
