Rear Door Trim, Ashtray

Ashtray

Removing






- Open ashtray and remove ashtray insert.

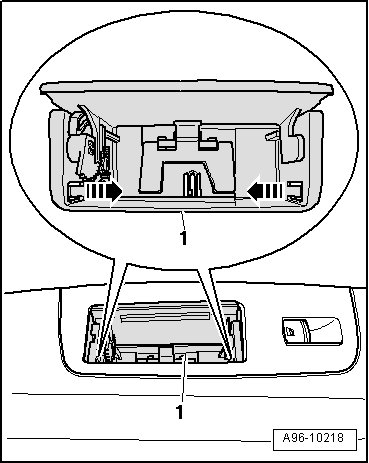

- Release left and right clip - arrows - and remove ashtray mount - 1 -.

- Disconnect the connector from the ashtray illumination.

- Remove the ashtray illumination.

Installing

Install in reverse order of removal.
