Rear Door Trim, Armrest

Armrest

Removing

- Remove ashtray. Refer to => [ Ashtray ] Ash Tray.

- Remove door handle. Refer to => [ Pull Handle ] Pull Handle.

- Remove the door trim panel. Refer to => [ Door Trim Panel ] Door Trim Panel.

- Remove insulation in upper area from door trim.

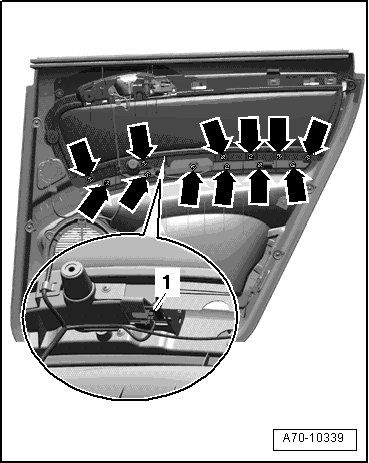

- Disconnect the connector - 1 -.

- Remove screws - arrows - and remove armrest.

Installing

Install in reverse order of removal.

• Tightening specifications, refer to => [ Rear Door Trim, Interior Side Overview ] Rear Door Trim, Interior Side Overview.
