Grille: Service and Repair






Radiator Grille

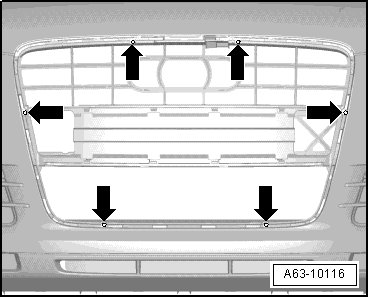

Bolting Points






- Front bumper cover removed.

- Remove screws - arrows - and remove radiator grille forward.
