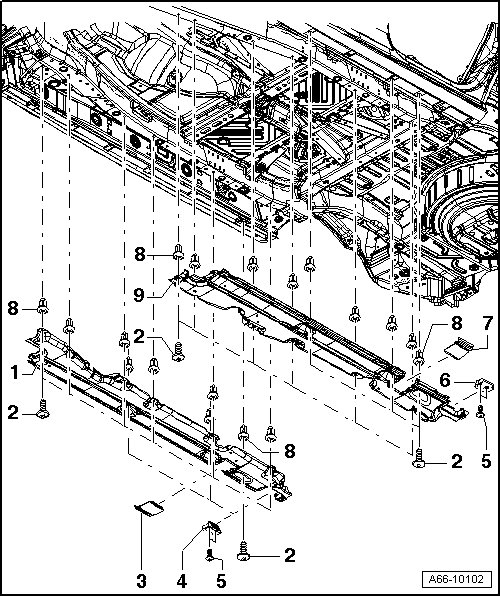

Underbody Trim Panel Overview

Underbody Trim Panel Overview






1 Right Underbody Trim

2 Bolt

• 2 Nm

3 Cover

• Clipped in

4 Right Mount

• Hoist mount

5 Bolt

• 9 Nm

6 Left Mount

• Hoist mount

7 Cover

• Clipped in

8 Clip

9 Right Underbody Trim
