Plenum Chamber Bulkhead

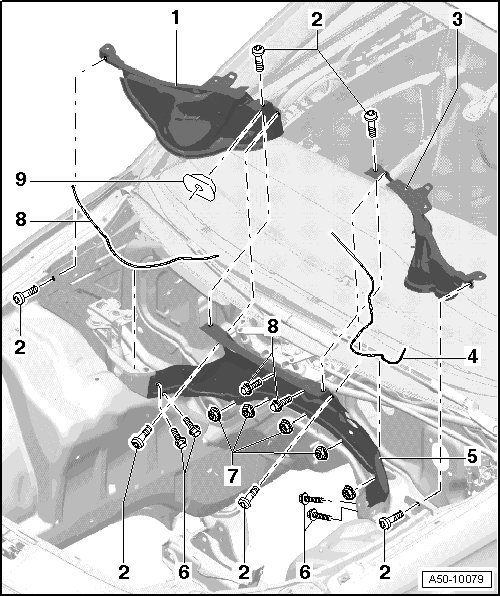

Plenum Chamber Bulkhead






1 Right Bulkhead

2 Bolt

• 8 Nm

3 Left Bulkhead

4 Left Gasket

• When installing bulkhead, ensure seal is seated correctly.

5 Center Bulkhead

6 Hex Head Bolts

• 8 Nm

7 Hex Nuts

• 8 Nm

8 Right Gasket

• When installing bulkhead, ensure seal is seated correctly.

9 Plugs

• Press into right bulkhead.
