Front Bumper Reinforcement: Service and Repair

Bumper Crossmember

CAUTION!
On vehicles with distance regulation (ACC), observe the following.

If impact member is removed and re-installed or changes are made to ACC bracket, distance regulation adjustment must be carried out.

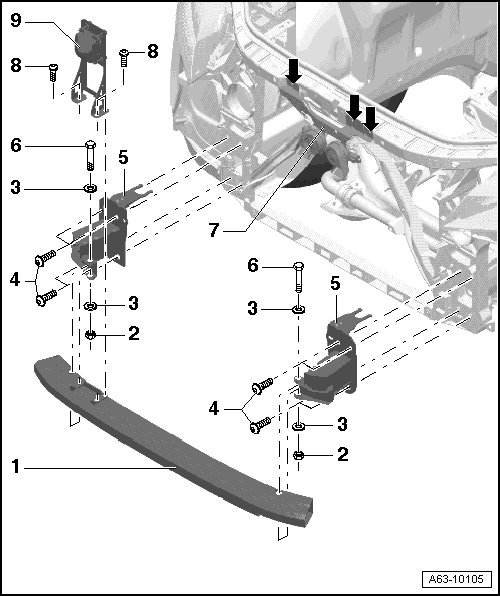

1 Side impact member

• Bumper cover removed.

• To remove, remove screws - 6 - while counter-holding at nut - 2 -.

2 Hex nut

• 60 Nm

3 Window

4 Screw

• 60 Nm

5 Shock absorber

6 Hex head bolt

• 23 Nm

• When removing and installing, counter-hold at nut - 2 -.

7 Signal horn

8 Combination screw

• 8 Nm

9 ACC sensor

• Only installed on vehicles with ACC.

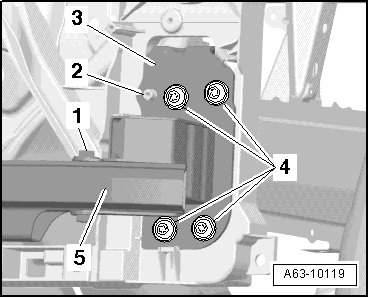

Bumper crossmember, removing





- Bumper cover removed.

- Remove screws - 1 - and impact member - 5 -.

- To remove impact absorber - 3 -, remove screws - 4 -.

- Remove screw - 2 - and remove impact absorber.

- When installing, tighten screw - 2 - to 6 Nm.

- Screws - 4 - are tightened to 60 Nm.
