The Front Information Display Control Head (J685) (display) is attached to the Instrument cluster trim from behind together with the instrument cluster.

- Switch off all electrical consumers.

- Remove the key.

Removing

- Remove the instrument cluster.

- Disconnect harness connector from display and instrument cluster.

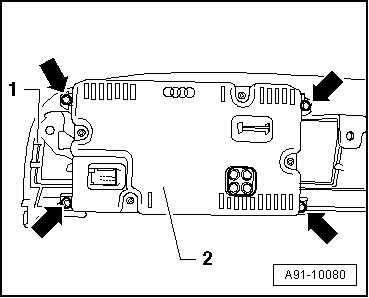

- Remove screws - arrows - (2 Nm).





- Carefully remove display - 2 - from the trim - 1 -.

Installing

- Install in reverse order of removal.
