Parking Aid Overview

Parking Aid Overview






1 Sensor For Parking Aid

• In front bumper.

• Only with 8-channel parking aid.

• Removing and installing, refer to => [ Front Parking Aid Sensors ] Front Parking Aid Sensors.

2 Front Parking Aid Warning Buzzer (H22)

• Only with 8-channel parking aid.

• On center instrument panel relay and fuse carrier bracket.

• Removing and installing, refer to => [ Front Parking Aid Warning Buzzer (H22), 8 - Channel Parking Aid ] Front Parking Aid Warning Buzzer (H22), 8 - Channel Parking Aid.

3 Parking Aid Button (E266)

• Only with 8-channel parking aid.

• With Parking Aid Switch Illumination (L117).

• With integrated Parking Aid Indicator Lamp (K136).

4 Parking Aid Control Module (J446)

• In right rear luggage compartment at wheel house.

• Removing and installing, refer to => [ Parking Aid Control Module (J446) ] Parking Aid Control Module (J446).

5 Sensor For Parking Aid

• In rear bumper.

• Removing and installing, refer to => [ Rear Parking Aid Sensors ] Rear Parking Aid Sensors.

6 Rear Parking Aid Warning Buzzer (H15)

• Behind luggage compartment left side trim.

• Removing and installing, refer to => [ Rear Parking Aid Warning Buzzer (H15) ] Rear Parking Aid Warning Buzzer (H15).

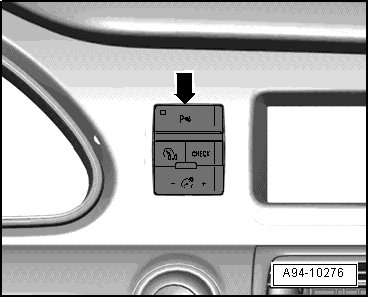

Component Location Parking Aid Button (E266)






• In switch strip in center console - arrow -.

• Removing and installing, refer to => [ Instrument Cluster Button Unit ] Instrument Cluster Button Unit.
