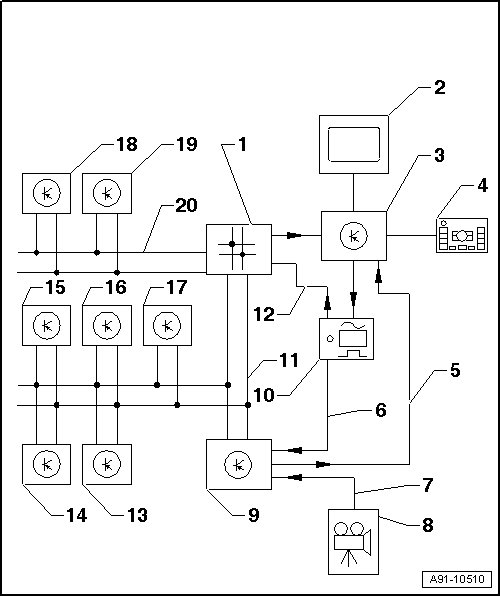

Rearview Camera System, Through 29 May 2009
Rearview Camera System, Through 29 May 2009
1 Data Bus On Board Diagnostic Interface (J533) Behind Instrument Panel Cover On Drivers Side
2 Front Information Display Control Head (J685) In Center Of The Instrument Panel
3 Front Information Display Control Head Control Module Behind Glove Compartment
4 Multimedia System Control Head (E380) In Center Console
5 FBAS Wire From The Rearview Camera System Control Module (J772) to the Front Information Display Control Head Control Module
6 Composite Cable From The TV Tuner (R78) to the Rearview Camera System Control Module (J772)
7 Rearview Camera (R189) Composite Cable to the Rearview Camera System Control Module (J772)
8 Rear View Camera (R189) In Rear Lid
9 Rearview Camera System Control Module (J772) Behind The Luggage Compartment Right Side Trim
10 TV Tuner (R78) Behind The Right Luggage Compartment Trim Panel
11 CAN Bus (Comfort)
12 MOST Bus
13 Parking Aid Control Module (J446) Behind The Luggage Compartment Right Side Trim
14 Vehicle Electrical System Control Module (J519) Behind Instrument Panel Cover On Driver's Side
15 Comfort System Central Control Module (J393) Behind The Luggage Compartment Right Side Trim
16 Towing Recognition Control Module (J345) Behind The Luggage Compartment Right Side Trim
17 Access/Start Authorization Control Module (J518) Behind The Right Luggage Compartment Side Trim Panel
18 ABS Control Module (J104) In The Engine Compartment
19 Steering Angle Sensor (G85) On Steering Column At Steering Column Electronic Systems Control Module (J527)
20 CAN Bus (Powertrain)
