Transfer Case 0BU, Front Final Drive 0BM, 0C1 and 0BN, Rear Final Drive 0B (0C8A,0BNH,0BPH,0BMV,0C1V Transmission)
Transfer Case 0BU, Front Final Drive 0BM, 0C1 and 0BN, Rear Final Drive 0B (0C8A,0BNH,0BPH,0BMV,0C1V Transmission)

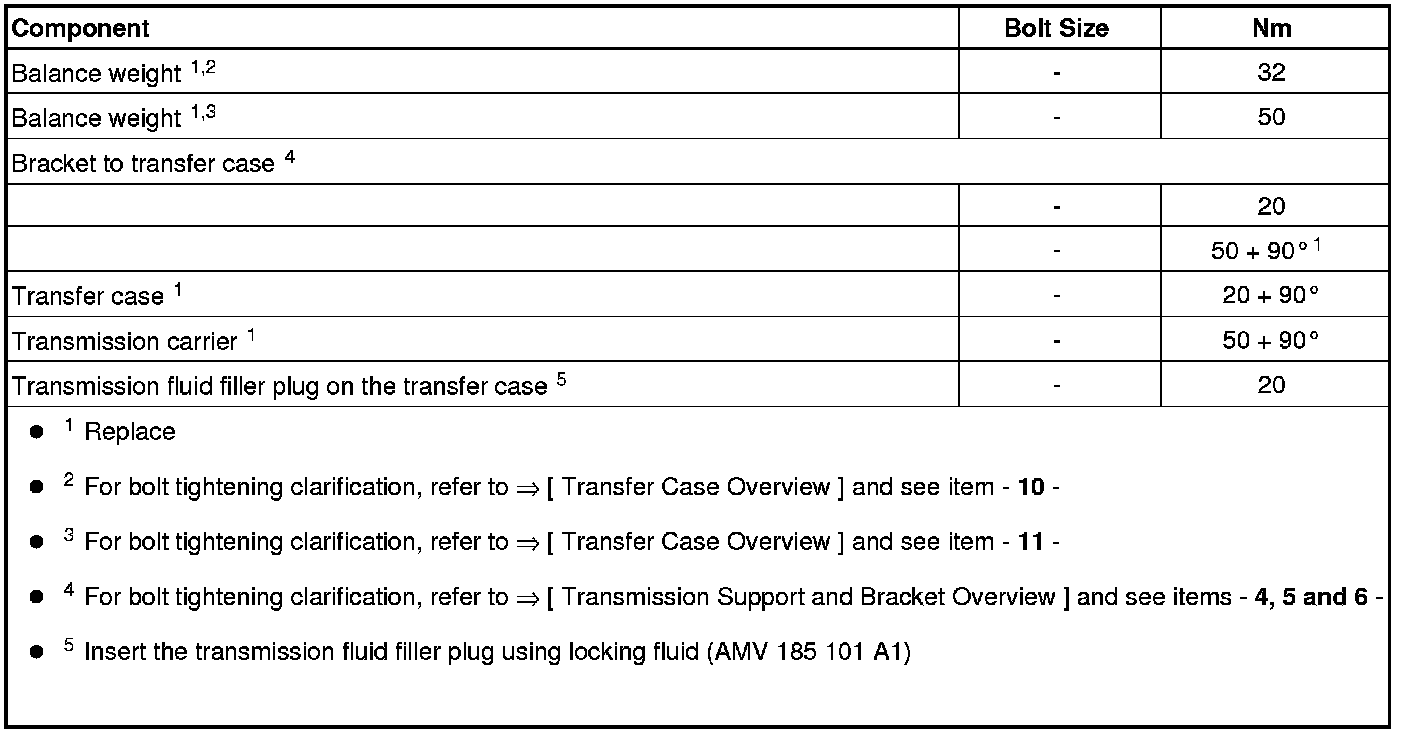

Fastener Tightening Specifications
