Charge Air Cooling Circuit Cooler

Charge Air Cooling Circuit Cooler

Special tools, testers and auxiliary items required

• Hose Clamps Up to 25 mm Dia. (3094)

• Drip Tray for VAS 6100 (VAS 6208)

• Hose Clip Pliers (VAS 6362)

Removing






• The following removal and installation procedure is for the left charge air cooling circuit cooler.

Risk of scalding due to hot steam and hot coolant.

• The coolant system is under pressure when the engine is warm.

• Reduce pressure by covering coolant reservoir cap with a cloth and carefully open.

- Open the coolant reservoir cap.

- Remove the front noise insulation - 1 -.

- Remove front bumper cover.

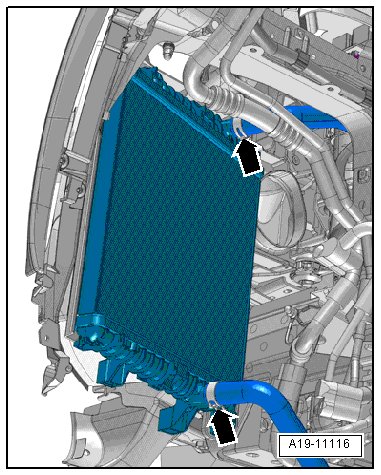

- Disconnect the coolant hoses - arrows - together with the (3094).






- Loosen the clamps and remove the coolant hoses.

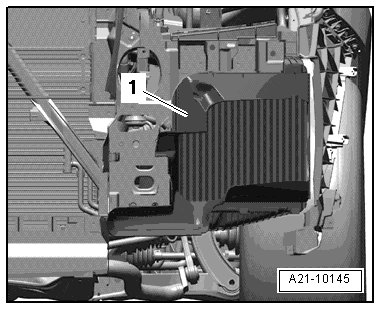

- Remove the air guide - 1 - from the charge air cooling circuit cooler.

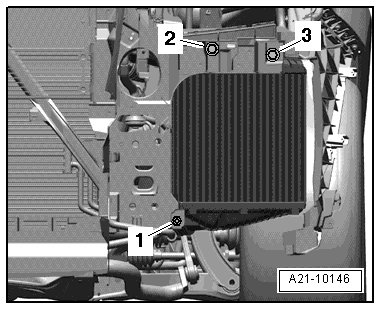

- Remove the nut - 1 - and the bolts - 2 and 3 - and then remove the charge air cooling circuit cooler.






Installing

Install in reverse order, paying attention to the following:

• Tightening specification, refer to => [ Charge Air Cooling Circuit Cooler Overview ] Charge Air Cooling Circuit Cooler Overview.

• If there are small impressions on the fins, refer to => [ Coolers and Condensers ] Coolers and Condensers.

• Secure all hose connections with hose clamps of the same type as those equipped by the factory. Refer to the Parts Catalog.

- Install front bumper.

- Install the front noise insulation.

- Check the coolant level => [ Check the coolant level. ] Service and Repair.
