Vacuum Pump

Vacuum Pump

Removing

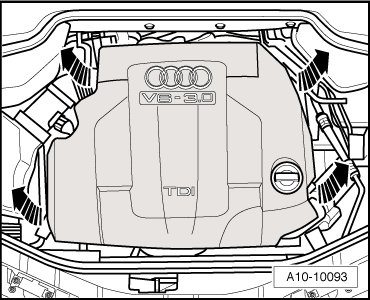

- Carefully remove engine cover from 4 retaining pins in succession - arrows -.

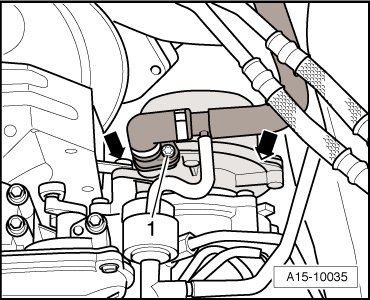

- Remove bolt - 1 - and remove vacuum hose with support to vacuum pump.






- Remove bolts - arrows - and remove vacuum pump.

Installing

Installation is done in reverse order, but observe the following:

• Replace O-rings.

- Position vacuum pump drive so that it engages in groove on camshaft - arrows - when vacuum pump is installed.






Tightening Specifications
