Rear Wheel Spoiler Overview

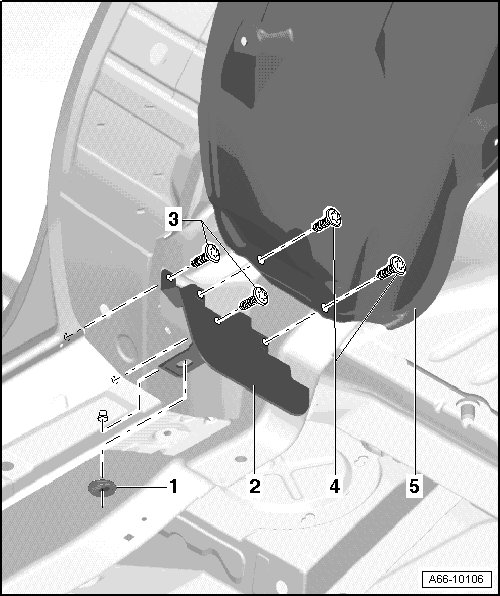

Rear Wheel Spoiler Overview






1 Clip

• To remove, release clip, slide it back and remove.

2 Rear Wheel Spoiler

• Remove screws - 4 -.

• Remove screws on wheel housing liner from bottom to top in wheel spoiler area.

• Press wheel housing liner to side, remove screws - 3 - and remove wheel spoiler downward.

3 Bolt

• 2 Nm

4 Bolt

• 2 Nm

5 Rear Wheel Housing Liner

• Remove screws on wheel housing liner from bottom to top as much as necessary so that liner can be pushed to side in order to remove screws - 3 -.
