Rear Wheel Housing Liners

Rear Wheel Housing Liners

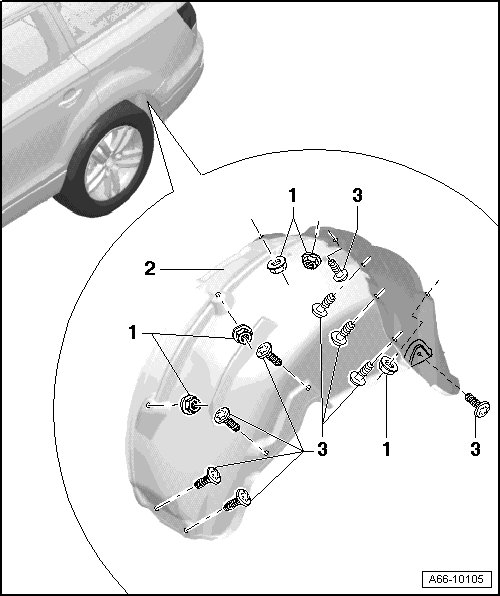

• To remove rear wheel housing liner, it is not necessary to remove rear wheel through strong shock absorber rebound.






1 Nut

• 1.5 Nm

2 Rear Wheel Housing Liner

- To remove, remove all screws and nuts.

- Remove wheel housing liner under side panel and raise over rear wheel out of wheel housing.

3 Bolt

• 1.5 Nm
