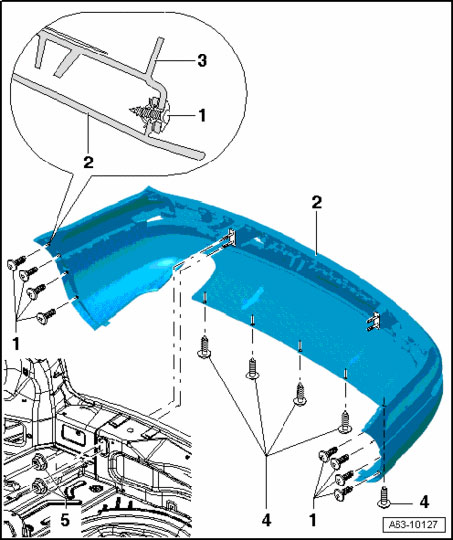

Rear Bumper Bolting Points

Rear Bumper Bolting Points







1 - Metal screw
- 2 Nm

2 - Cover
- To remove, remove all screws and nuts, unclip at left and right from guide parts and remove cover toward rear.
- To remove spoiler, remove cover.
- Unclip spoiler in stages from cover.

3 - Guide piece
4 - Metal screw
- 2 Nm

5 - Combination nut
- 4 Nm
