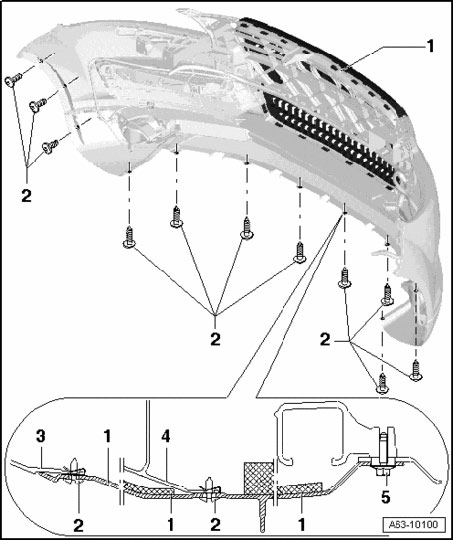

Front Bumper Bolting Points

Front Bumper Bolting Points







1 - Bumper cover
- On vehicles with ACC, with a new part, a foam piece must be broken out of cover.

2 - Bolts
- 2 Nm

3 - Noise insulation
4 - Noise insulation crossmember
5 - Screw
- 8 Nm
