Rear Door Trim, BOSE Sound System Trim

BOSE Sound System Trim

Removing






- Remove the door trim panel. Refer to => [ Door Trim ] Service and Repair.

- Remove insulation in front area from door trim.

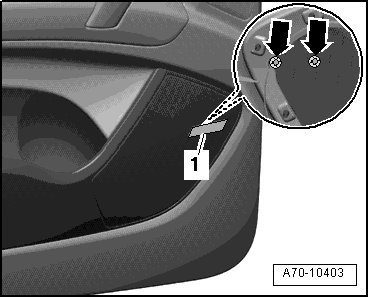

- Pry off clamping washers - arrows -.

- Remove BOSE sound system trim panel - 1 - from door trim.

Installing

Install in reverse order of removal.
