Rear Window Wiper Motor (V12)

Rear Window Wiper Motor (V12)

Removing






- Remove wiper arm, refer to => [ Wiper Arm ] Wiper Arm.

- Remove lower rear lid trim panel..

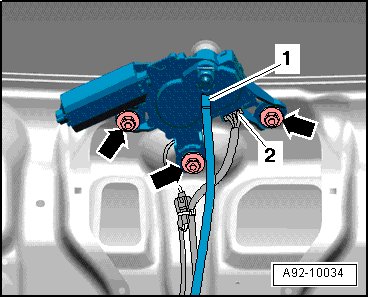

- Disconnect electrical connector - 2 -.

- Disconnect washer fluid hose - 1 - from connecting pipe of nozzle.

- Remove the nuts - arrows - and remove the rear window wiper motor.

Installing

Install in reverse order of removal, observing the following:

• Washer fluid hose must engage audibly into nozzle connection.

- Install lower rear lid trim panel..

- Adjust wiper arm, refer to => [ Rear Window Wiper Arm, Adjusting ] Rear Window Wiper Arm, Adjusting.
