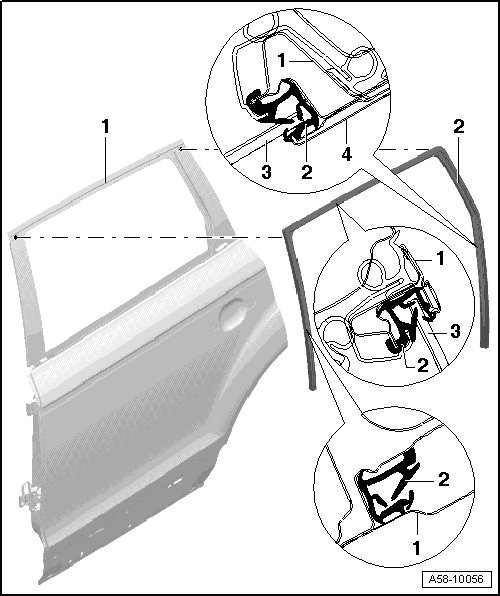

Rear Door Window Guide

Window Guide






1 Door

2 Window Guide

• Door window removed. Refer to => [ Rear Door Window ] Rear Door Window.

• For easier installation, coat window guide with a soap solution.

• Press window guide into guide shafts as shown.

3 Door Window

4 C-pillar Trim
