Front Door Window Guide

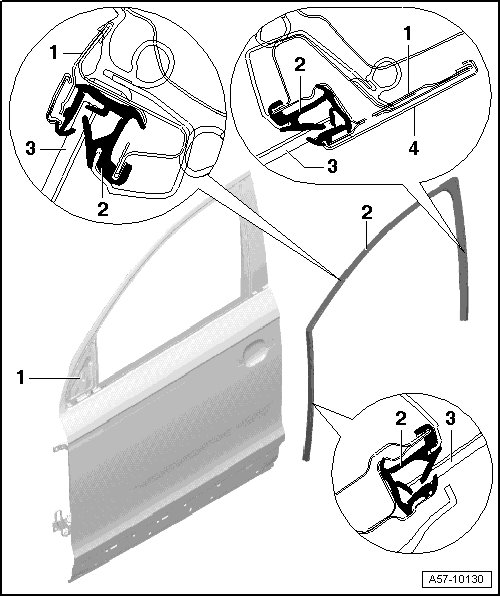

Window Guide






1 Door

2 Window Guide

• Door window removed, refer to => [ Front Door Window ] Front Door Window.

• For easier installation, coat window guide with a soap solution.

• Press window guide into guide shafts as shown.

3 Door Window

4 B-pillar Trim
