Window Shade: Service and Repair

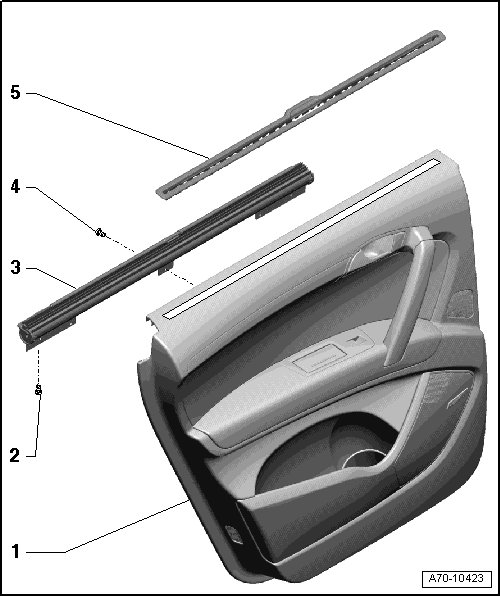

Rear Door Sun Shade Overview






1 Rear Door Trim

2 Bolt

• Tightening specification - 1.2 Nm

3 Sun Shade

• Removing and installing, refer to => [ Sun Shade ] Sun Shade.

4 Bolt

• Tightening specification - 1.2 Nm

5 Guide Strip

• Removing and installing, refer to => [ Sun Shade ] Sun Shade.

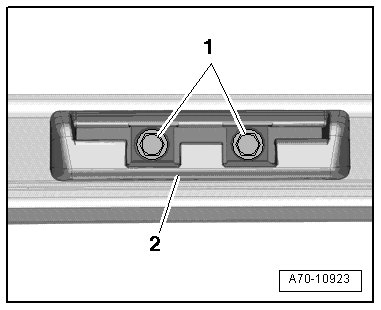

Tightening specification, sun shade mount






- Tighten the screws - 1 - on the sun shade mount to 1.2 Nm.
