Front Door Window Glass Weatherstrip: Service and Repair

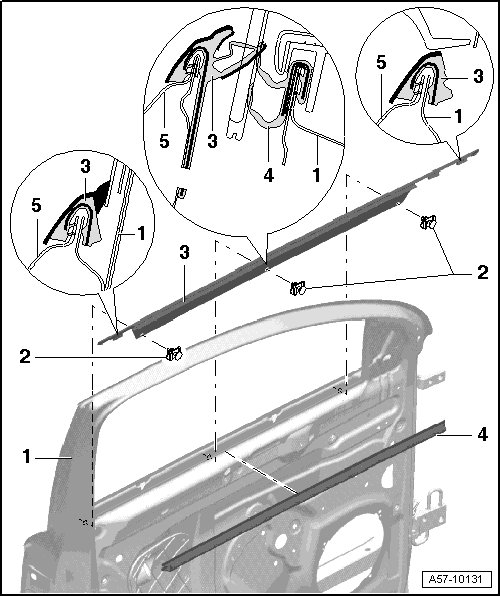

Window Shaft Strip






1 Door

2 Clip

• 3x

3 Outer Window Shaft Strip

• Removal:

Door trim removed.

• Exterior rearview mirror removed. Refer to=> [ Exterior Rearview Mirror ] Exterior Rearview Mirror.

- Run door window all the way up.

- Remove clips - 2 - from shaft strip.

- Remove shaft strip upward.

4 Inner Window Shaft Strip

• Removal:

Door trim removed.

- Remove shaft strip upward.

5 Outer Door Panel
