Rear Door Lamps and Switches

Power Window Switches In Rear Doors (E52)/(E54)

Removing






- Switch off ignition and remove ignition key.

- Remove rear door trim..

- Detach insulating mat from door trim.

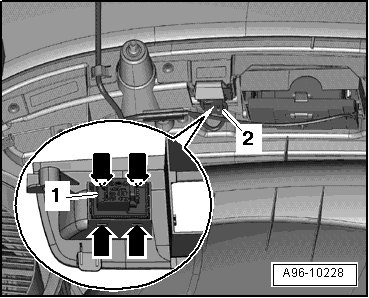

- Carefully release catches - arrows - using a small screwdriver.

- Pull rear window switch - 1 - downward out of switch mount.

- Disconnect electrical connector - 2 -.

Installing

Install in reverse order of removal, observing the following:

- Press rear window switch in door into switch mount until catches engage.

- Install rear door trim..
