Front Passenger Door Window Regulator Switch (E107)

Front Passenger Door Window Regulator Switch (E107)

Removing






- Switch off ignition and remove ignition key.

- Remove front door trim..

- Detach insulating mat from door trim.

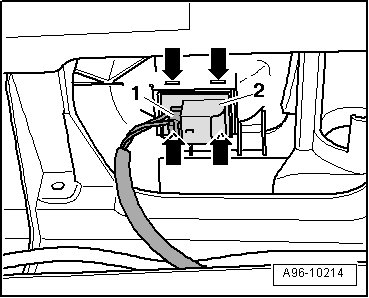

- Carefully release catches - arrows - using a small screwdriver.

- Pull Front Passenger Door Window Regulator Switch - item 2 - downward out of switch mount.

- Disconnect electrical connector - 1 -.

Installing

Install in reverse order of removal, observing the following:

- Press Front Passenger Door Window Regulator Switch into switch mount until catches engage.

- Install front door trim.
