Auxiliary Hydraulic Pump Control Module (J922)

Auxiliary Hydraulic Pump Control Module (J922)

Removing






- Turn off the ignition and remove the key.

- Remove the front passenger seat.

- Release the tabs and open the cover on the auxiliary hydraulic pump control module housing.

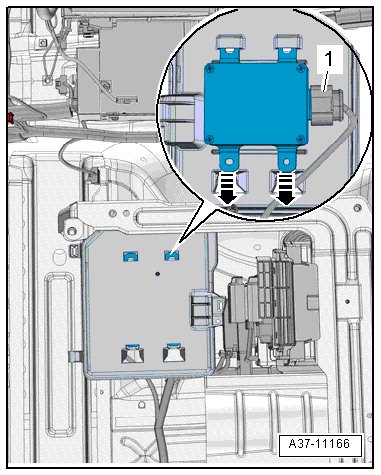

- Release the tabs - arrows -, remove the auxiliary hydraulic pump control module and disconnect the connector.

Installing

Install in reverse order of removal. Note the following:

- Install the front passenger seat.
