Grounding Point: Locations

Ground Connections

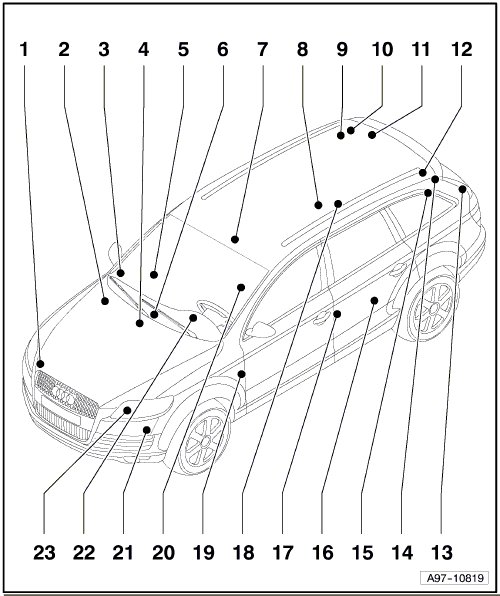

Overview of Ground Connections







1 - (685) Ground Connection 1 (on right front long member)

2 - (609) Ground Connection (in plenum chamber, right)

3 - (43) Ground Connection (on right lower A-pillar)

4 - (608) Ground Connection (in center plenum chamber)

5 - (35) Ground Connection (below front passenger's seat)

6 - (45) Ground Connection (behind instrument panel, center)

7 - (78) Ground Connection (on right lower B-pillar)

8 - (675) Ground Connection 2 (in right luggage compartment)

9 - (666) Ground Connection (on right rear roof)

10 - (669) Ground Connection 2 (on right D-pillar)

Ground Connections Continue





11 - (53) Ground Connection (in rear lid, right)

12 - (667) Ground Connection (on left rear roof)

13 - (657) Ground Connection 1 (near left rear window)

14 - (658) Ground Connection 2 (near left rear window)

15 - (668) Ground Connection 2 (on left D-pillar)

16 - (61) Ground Connection (on left C-pillar)

16 - (62) Ground Connection (on right C-pillar)

17 - (77) Ground Connection (on left lower B-pillar)

18 - (51) Ground Connection (in right luggage compartment)

19 - (44) Ground Connection (on left lower A-pillar)

20 - (687) Ground Connection 1 (on center tunnel)

21 - (671) Ground Connection 1 (on left front long member)

22 - (664) Ground Connection (behind instrument panel, left)

23 - (640) Ground Connection 2 (in engine compartment, left)

23 - Point of connection battery-ground wire

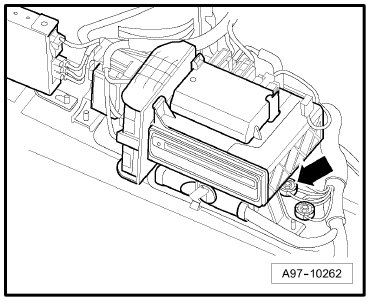

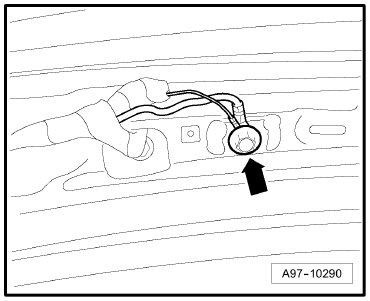

(608) - Ground Connection (in center plenum chamber) -Arrow-
Component Location:
In center plenum chamber.
Torque Setting:
9 Nm

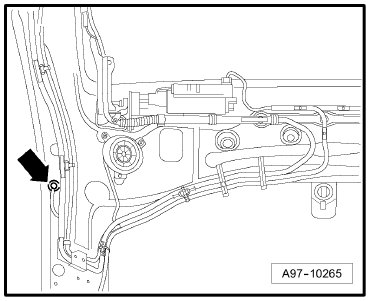

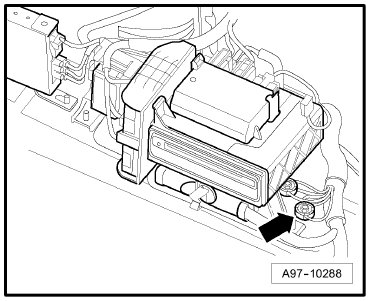

(609) - Ground Connection (in plenum chamber, right) -Arrow-
Component Location:
In plenum chamber, right.
Torque Setting:
9 Nm

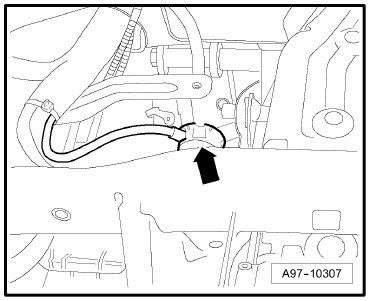

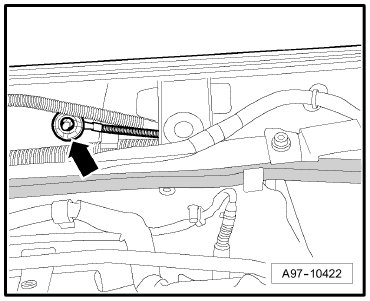

(640) - Ground Connection (in engine compartment, left) -Arrow-
Component Location:
In engine compartment, left.
Torque Setting:
9 Nm

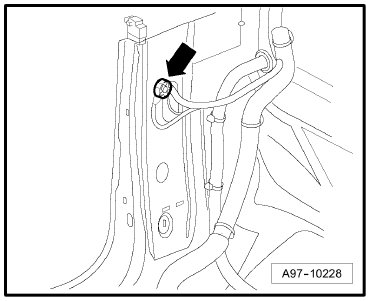

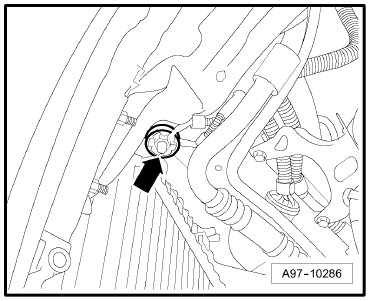

(671) - Ground Connection 1 on left front long member -Arrow-
Component Location:
On left front long member.
Torque Setting:
9 Nm

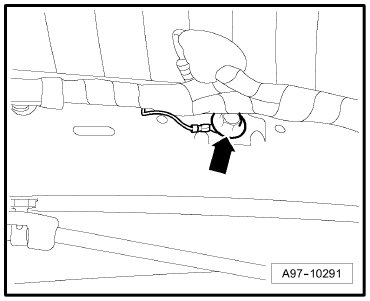

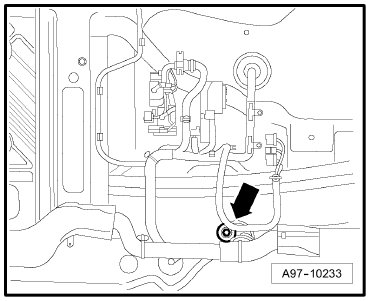

(685) - Ground Connection 1 (on right front long member) -Arrow-
Component Location:
On right front long member.
Torque Setting:
9 Nm

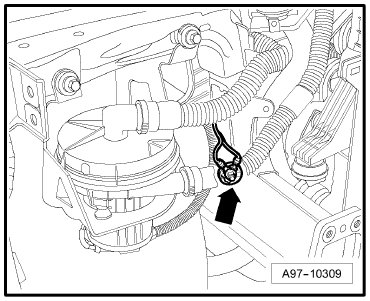

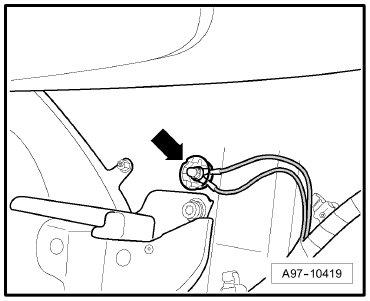

(687) - Ground connection front centre tunnel -Arrow-
Component Location:
Below center console.
Torque Setting:
9 Nm

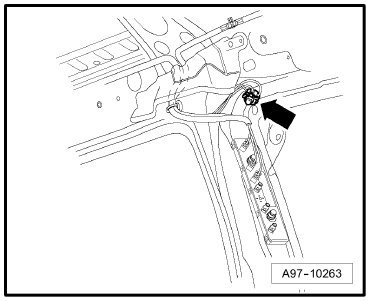

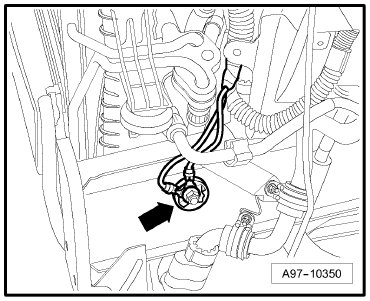

(35) - Ground Connection (below front passenger's seat) -Arrow-
Component Location:
Below front passenger's seat.
Torque Setting:
9 Nm

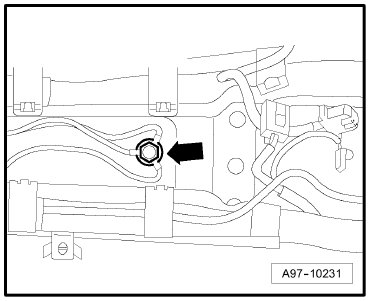

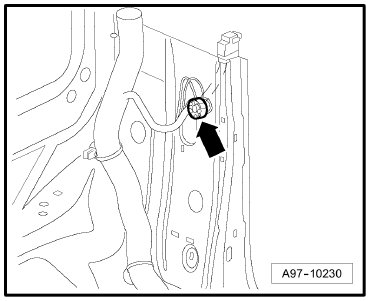

(43) - Ground Connection (on right A-pillar) -Arrow-
Component Location:
On right lower A-pillar.
Torque Setting:
9 Nm





(44) - Ground Connection (on left A-pillar) -Arrow-
Component Location:
On left lower A-pillar.
Torque Setting:
9 Nm





(51) - Ground Connection (in luggage compartment, right) -Arrow-
Component Location:
Behind right luggage compartment side panel trim.
Torque Setting:
9 Nm





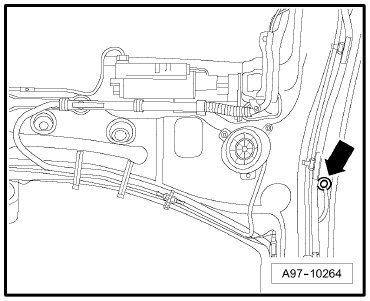

(53) - Ground Connection (in rear lid, right) -Arrow-
Component Location:
In right rear lid.
Torque Setting:
9 Nm





(61) - Ground Connection (on left C-pillar) -Arrow-
Component Location:
Below left C-pillar, on floor, near seat bracket mounting.
Torque Setting:
9 Nm





(62) - Ground Connection (on right C-pillar) -Arrow-
Component Location:
Below right C-pillar, on floor, near seat bracket mounting.
Torque Setting:
9 Nm





(77) - Ground Connection (on left lower B-pillar) -Arrow-
Component Location:
On left lower B-pillar.
Torque Setting:
9 Nm





(78) - Ground Connection (on right lower B-pillar) -Arrow-
Component Location:
On right lower B-pillar.
Torque Setting:
9 Nm





(657) - Ground Connection 1 (left, near rear window)-Arrow-
Component Location:
Near left rear window.
Torque Setting:
9 Nm





(658) - Ground Connection 2 (left, near rear window)-Arrow-
Component Location:
Near left rear window.
Torque Setting:
9 Nm





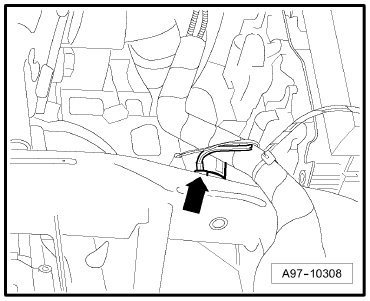

(664) - Ground Connection (behind instrument panel, left) -Arrow-
Component Location:
Behind left instrument panel.
Torque Setting:
9 Nm





(45) - Ground Connection (behind instrument panel, center) -Arrow-
Component Location:
Behind instrument panel, center.
Torque Setting:
9 Nm





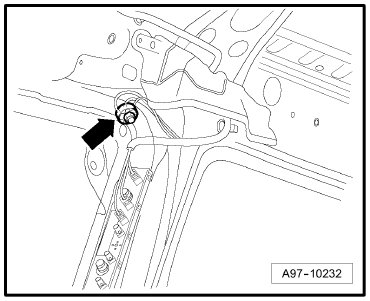

(666) - Ground Connection (on right rear roof) -Arrow-
Component Location:
Behind right C-pillar trim.
Torque Setting:
9 Nm





(667) - Ground Connection (on left rear roof) -Arrow-
Component Location:
Behind left C-pillar trim.
Torque Setting:
9 Nm





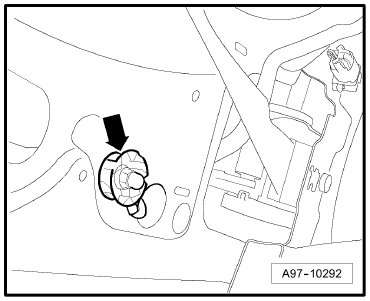

(668) - Ground Connection 2 (on left D-pillar) -Arrow-
Component Location:
On D-pillar, left.
Torque Setting:
9 Nm





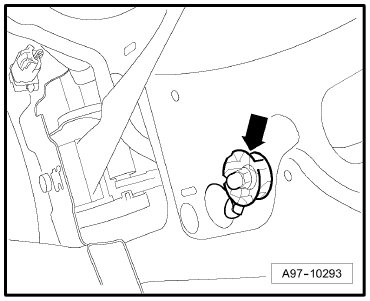

(669) - Ground Connection 2 (on right D-pillar) -Arrow-
Component Location:
On D-pillar, right.
Torque Setting:
9 Nm





(675) - Ground Connection 2 (in luggage compartment, right) -Arrow-
Component Location:
In luggage compartment, right
Torque Setting:
9 Nm

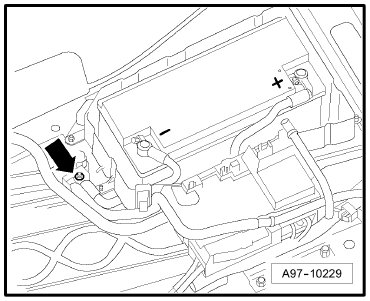

- Point of connection battery-ground wire -Arrow-
Component Location:
On Battery, lower left.
Torque Setting:
20 Nm
