Relay and Fuse Carrier Instrument Panel, Center
Relay and Fuse Carrier Instrument Panel, Center

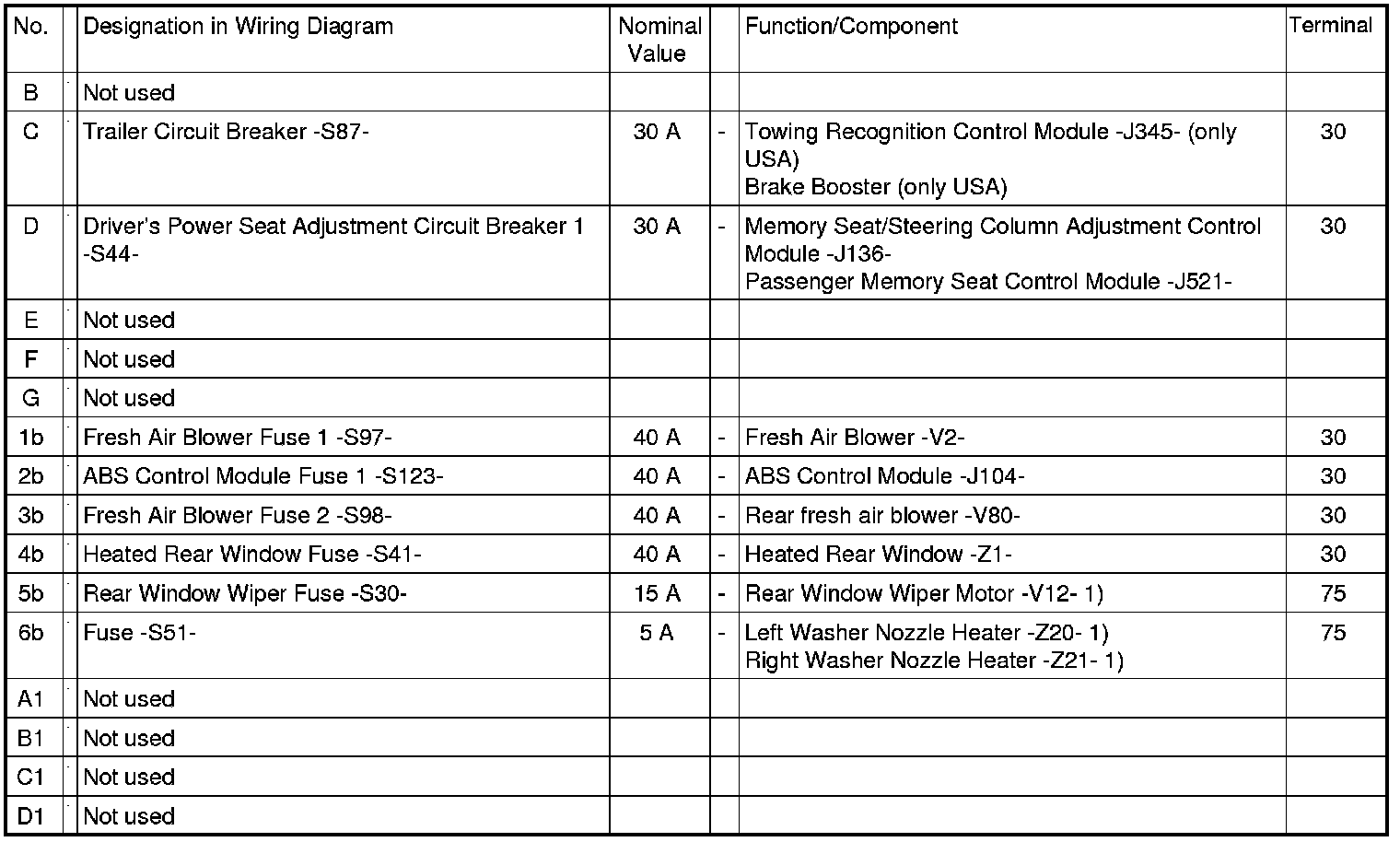

Fuses
Relay and fuse carrier instrument panel, center
Note:
•
1) from June 2007
