Driver Side E-Box Plenum Chamber

Driver Side E-Box Plenum Chamber

Removing






- Remove windshield wiper motor. Refer to => [ Windshield Wiper Motor with Wiper Motor Control Module ] Windshield Wiper Motor With Wiper Motor Control Module.

- Remove screws - arrows - and remove E-Box plenum chamber cover.

- Disconnect electrical multi-pin connectors - 2, 3, 5, 6, 7, 8, 9 - on E-Box plenum chamber connector station.






- Remove connector - 10 - from E-box plenum chamber.

- Remove both wiring harnesses - 1 - and - 4 - from E-box plenum chamber mount.

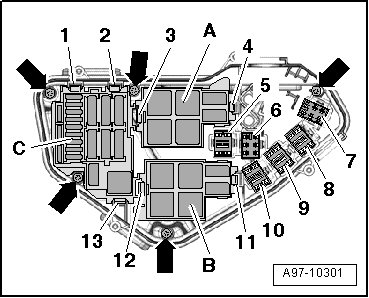

- Release catches - 11 - and - 12 - and pull relay carrier - B - in E-box up - electrical wiring remains connected.






- Release catches - 3 - and - 4 - and pull relay carrier - A - in E-box up - electrical wiring remains connected.

- Release catches - 1, 2, 13 - and pull relay and fuse panel - C - in E-box up - electrical wiring remains connected.

- Remove screws - arrows -.

- Release retaining clips and remove plug-in sockets - 5 to 10 - from E-box.

- Pull upper part of E-box plenum chamber up and at the same time, guide relay and fuse panel out.

- Pull lower part of E-box plenum chamber up out of retaining pins.

Installing






Install in reverse order of removal, observing the following:

- Check whether rubber retainers - 1 - sit in E-box plenum chamber guides, insert if necessary.

- Install windshield wiper motor. Refer to => [ Windshield Wiper Motor with Wiper Motor Control Module ] Windshield Wiper Motor With Wiper Motor Control Module.

Tightening Specifications
