Center Instrument Panel Fuse Panel

Center Instrument Panel Fuse Panel

Removing






- With ignition switched off, disconnect battery Ground (ND) wire. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

- Remove driver's side upper instrument panel cover.

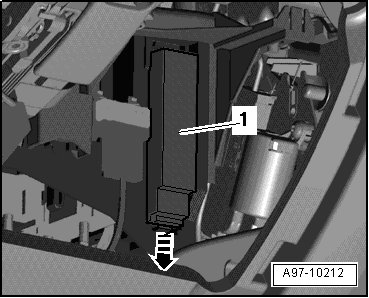

- Release retaining clip - arrow - and press fuse panel - 1 - back out of relay and fuse panel.

- Unlock the release and remove from the fuse carrier, if equipped.






- Remove the fuses from the fuse panel.

- Release retaining clips - arrows - and remove the cover from the fuse panel.

- Remove connector retaining strip - 1 - - arrow - and remove connectors from plug-in socket.






• Check the exact assignment for center instrument panel fuse panel in the current wiring diagram.

Installing

Install in reverse order of removal, observing the following:

- Install driver's side upper instrument panel cover.

- Connect battery. Refer to => [ Connecting ] Battery, Disconnecting and Connecting.
