12V Socket 5

12V Socket 5

Removing






- Switch off ignition and remove ignition key.

- Release luggage compartment right side trim cover - 1 - at place marked with - arrow A -.

- Remove luggage compartment right side trim cover in - direction of arrow B -.

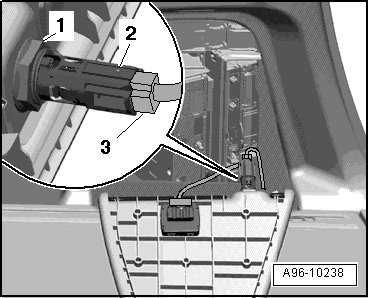

- Disconnect electrical connector - 3 -.






- Remove nut - 1 -.

- Remove the 12V socket - 2 - from the luggage compartment right side trim cover.

Installing

Install in reverse order.

Tightening Specifications
