Outside Air Temperature Sensor (G17)

Outside Air Temperature Sensor (G17)

Removing






- Remove front bumper cover.

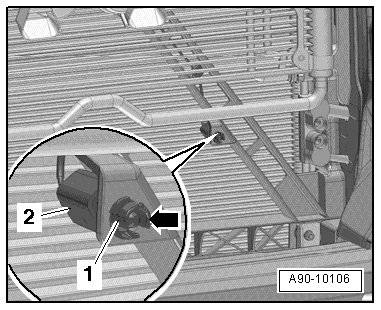

- Disconnect the electrical connector - 2 -.

- Carefully press the retaining clips together - arrow - and remove the outside air temperature sensor - item 1 - upward from the bracket.

Installing

Install in reverse order of removal, observing the following:

- Install the front bumper cover.
