Rear ABS Speed Sensor

Rear ABS Speed Sensor

Removing

- Raise vehicle.

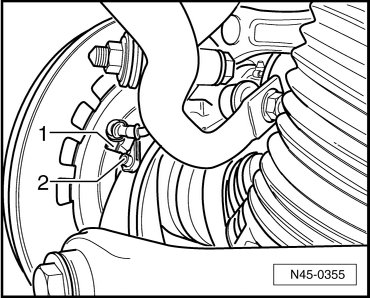

- Separate speed sensor and speed sensor wiring connector - 1 -.






- Remove bolt - 2 - from wheel bearing housing.

- Remove ABS speed sensor from wheel bearing housing.

Installing

- Before inserting wheel speed sensor, clean inner surface of bore hole and coat sensor completely with Polycarbamide grease (G 052 142 A2).

- Insert the speed sensor into the hole in the wheel bearing housing and tighten the bolt to 8 Nm.

- Connect speed sensor to speed sensor wiring.
