Brake Booster Vacuum Sensor: Service and Repair

Brake Booster Pressure Sensor

Removing

- Remove the plenum chamber cover.

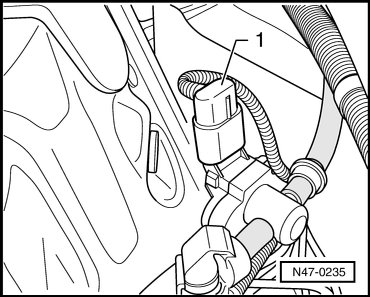

- Disconnect the connector - 1 -.






- Carefully pry down brake booster pressure sensor (G294) and remove.

Installing

Installation is performed in the reverse order of removal.
