Trunk / Liftgate Position Sensor: Service and Repair

Rear Lid Closed Sensor

Removing






- Remove the rear lid end panel trim panel..

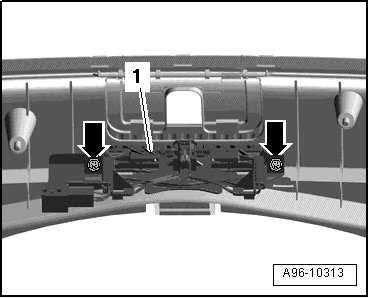

- Remove screws - arrows - and remove rear lid closed sensor - 1 -.

Installing

Install in reverse order of removal, observing the following:

- Install the rear lid end panel trim panel..

Tightening Specifications
