Multifunction Steering Wheel, Overview

Multifunction Steering Wheel, Overview

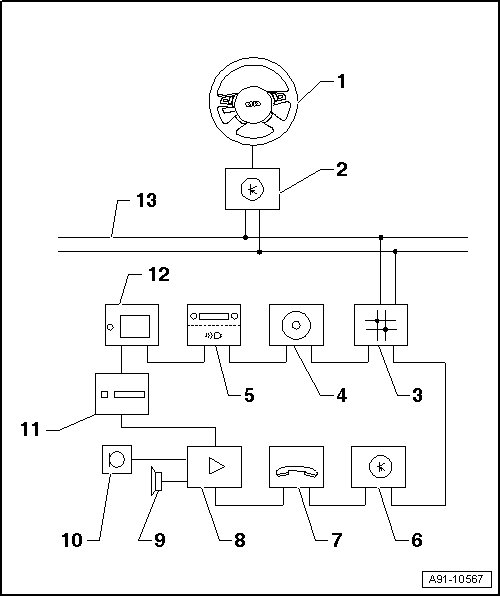

1 Multifunction Steering Wheel

• Multifunction Steering Wheel Control Module (J453) under right button.

• Removing and installing multifunction buttons, refer to => [ Multifunction Buttons ] Multifunction Buttons.

• Removing and installing Tiptronic switch, refer to => [ Tiptronic Switch ] Tiptronic Switch.

2 Steering Column Electronic Systems Control Module (J527)

• On steering column at steering column switches.

3 Data Bus OBD interface (J533)

• Behind instrument panel cover, drivers side.

4 Media Player, Position 1 (R118)

• In the top of the center console.

5 Radio

• Optional with Speech Input Control Module (J507) (through 29 May 2009).

• Behind the luggage compartment right side trim.

6 Front Information Display Control Head Control Module (J523) (Through 29 May 2009)

• Behind glove compartment.

- Information Electronics Control Module 1 (J794) (From 1 June 2009)

• In the top of the center console.

7 Telephone Transceiver (R36) (Through 29 May 2009)

• Under the right front seat.

8 Digital Sound System Control Module (J525)

• Behind the luggage compartment right side trim.

9 Sound Systems

10 Microphone Unit In Front Roof Module (R164)

• Overview (through 29 May 2009), refer to => [ Microphone Unit in Front Roof Module, Through 29 May 2009, Overview ] Microphone Unit In Front Roof Module (R164), Through 29 May 2009, Overview.

• Overview (from 1 June 2009), refer to => [ Microphone Unit in Front Roof Module, From 1 June 2009, Overview ] Microphone Unit In Front Roof Module (R164), From 1 June 2009, Overview.

11 Navigation System With CD Drive Control Module (J401) (Through 29 May 2009)

• in the luggage compartment beneath the flap on the right.

12 TV Tuner (R78)

• Behind the luggage compartment right side trim.

13 CAN bus (comfort)
