Impact Sensor: Locations

Airbag Systems

Airbag Crash Sensors Component Location







1 - Front Passenger Side Airbag Crash Sensor -G180- => [ Driver and Front Passenger Side Airbag Crash Sensors ] See Image Below.
• Located at the lower right B-pillar in sill panel strip area

2 - Rear Side Airbag Crash Sensor (on front Passenger side) -G257- => [ Driver and Front Passenger Rear Side Airbag Crash Sensors ] See Image Below.
• Located on the lower wheel liner below wheel housing trim

3 - Rear Side Airbag Crash Sensor (on Driver side) -G256- => [ Driver and Front Passenger Rear Side Airbag Crash Sensors ] See Image Below.
• Located on the lower wheel liner below wheel housing trim

4 - Driver Side Airbag Crash Sensor -G179- => [ Driver and Front Passenger Side Airbag Crash Sensors ] See Image Below.
• Located at the lower left B-pillar in sill panel strip area

5 - Driver Front Airbag Crash Sensor -G283- => [ Front Airbag Crash Sensors ] See Image Below.
• Located in the left of engine compartment between headlamp and radiator

6 - Front Passenger Front Airbag Crash Sensor -G284- => [ Front Airbag Crash Sensors ] See Image Below.
• Located in the right of engine compartment between headlamp and radiator

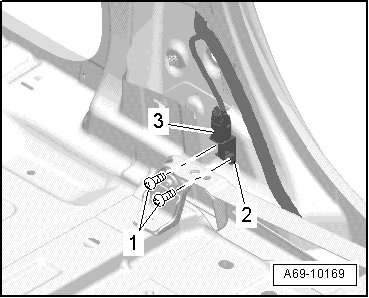

Driver and Front Passenger Side
Airbag Crash Sensors






2 - Driver Side Airbag Crash Sensor -G179- or Front Passenger Side Airbag Crash Sensor -G180-






Driver and Front Passenger Rear
Side Airbag Crash Sensors






2 - Rear Side Airbag Crash Sensor (on Driver side) -G256- or Rear Side Airbag Crash Sensor (on front Passenger side) -G257-

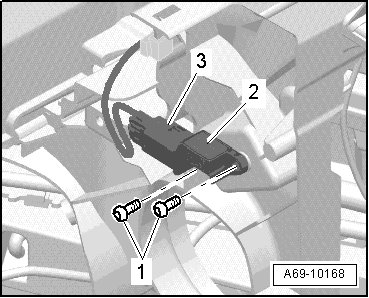

Front Airbag Crash Sensors






2 - Driver Front Airbag Crash Sensor -G283- or Front Passenger Front Airbag Crash Sensor -G284-
